GREEN TIRE STORAGE WITH STACKER CRANE

The Cassioli automatic warehouse with stacker crane is a completely customizable system, which allows the Green Tires to be arranged according to the specific needs of the customer, in terms of available space, capacity and flows. The warehouse for Green Tire with stacker crane is the most common solution in greenfields and where there are no space problems between existing machinery. In order to meet the different flow and interlocking logic requirements of the presses, Cassioli has designed two types of stacker cranes: single and double column. For each of them, different load configurations are available. The stacker cranes are able to move up to four tires at the same time; each fork, however, can be independent from the others, in order to guarantee, if necessary, the maximum flexibility of batch one. Inside the automatic warehouse there is the possibility of storing the Green Tires with or without tote / pallet: in the first case, the stacker lift will carry out the picking with a standard telescopic fork, while in the absence of the tote, the stacker lift will be configured with telescopic cross fork.

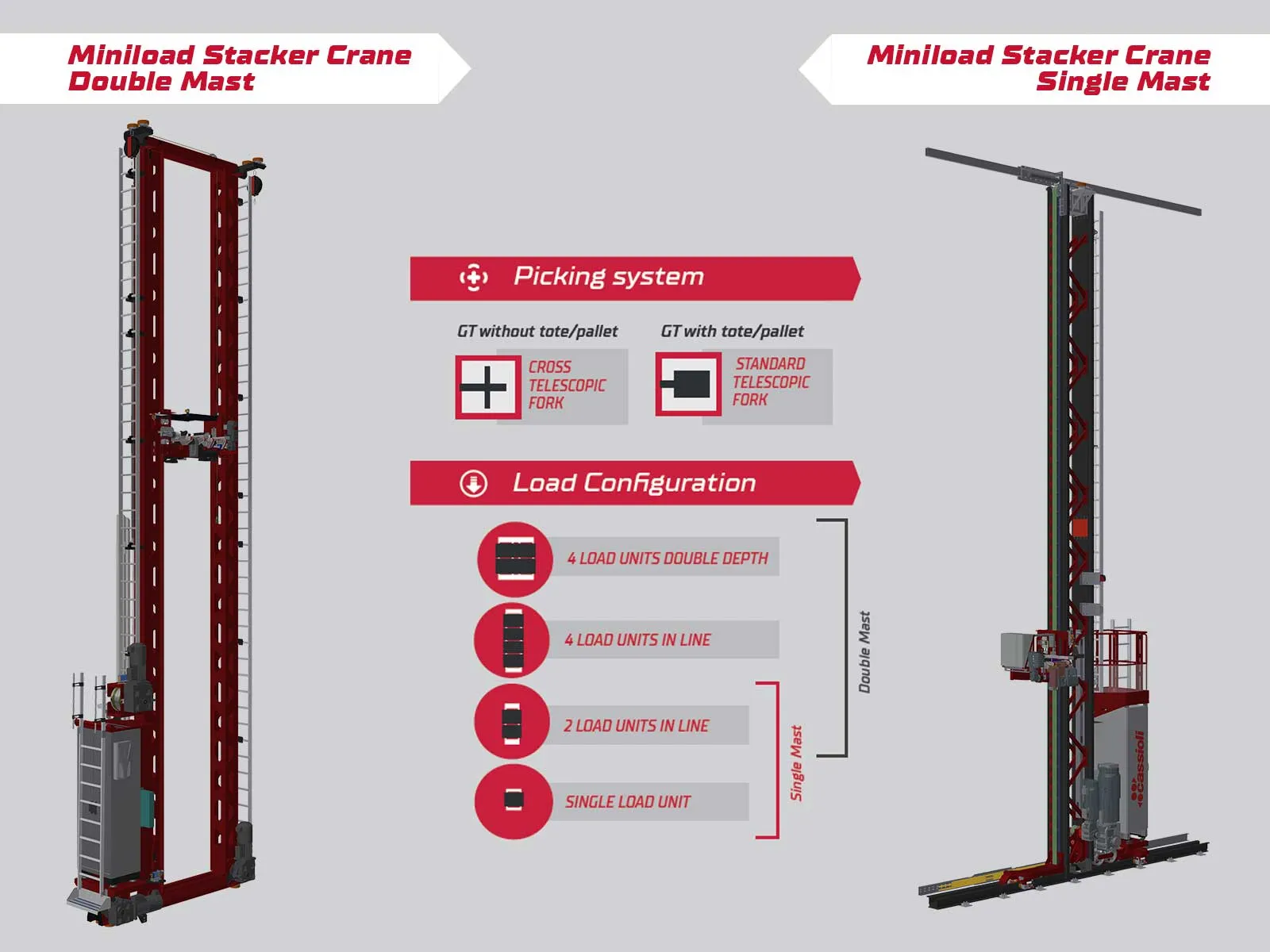

GREEN TIRE STORAGE WITH STACKER CRANE SINGLE OR DOUBLE MAST

Of the four possible, previously listed warehouse technologies, the stacker crane is the most common greenfield solution and where problems arise due to space between existing machinery.

To meet various flow and logical requirements of serving the presses, Cassioli designed two types of stacker cranes: single and double mast. Different loading configurations are available for each of them.

Stacker cranes can move up to four tires simultaneously: each fork however can be independent of the others, to guarantee maximum flexibility of even one batch.

MAIN FEATURES

  • Fully customizable system
  • Possibility of using single-mast or double-mast stacker cranes
  • System flexibility and modularity
  • Possibility of different load configurations
  • Storage of Green Tires with or without tote / pallet
  • Management software with a simple and intuitive interface

GALLERY

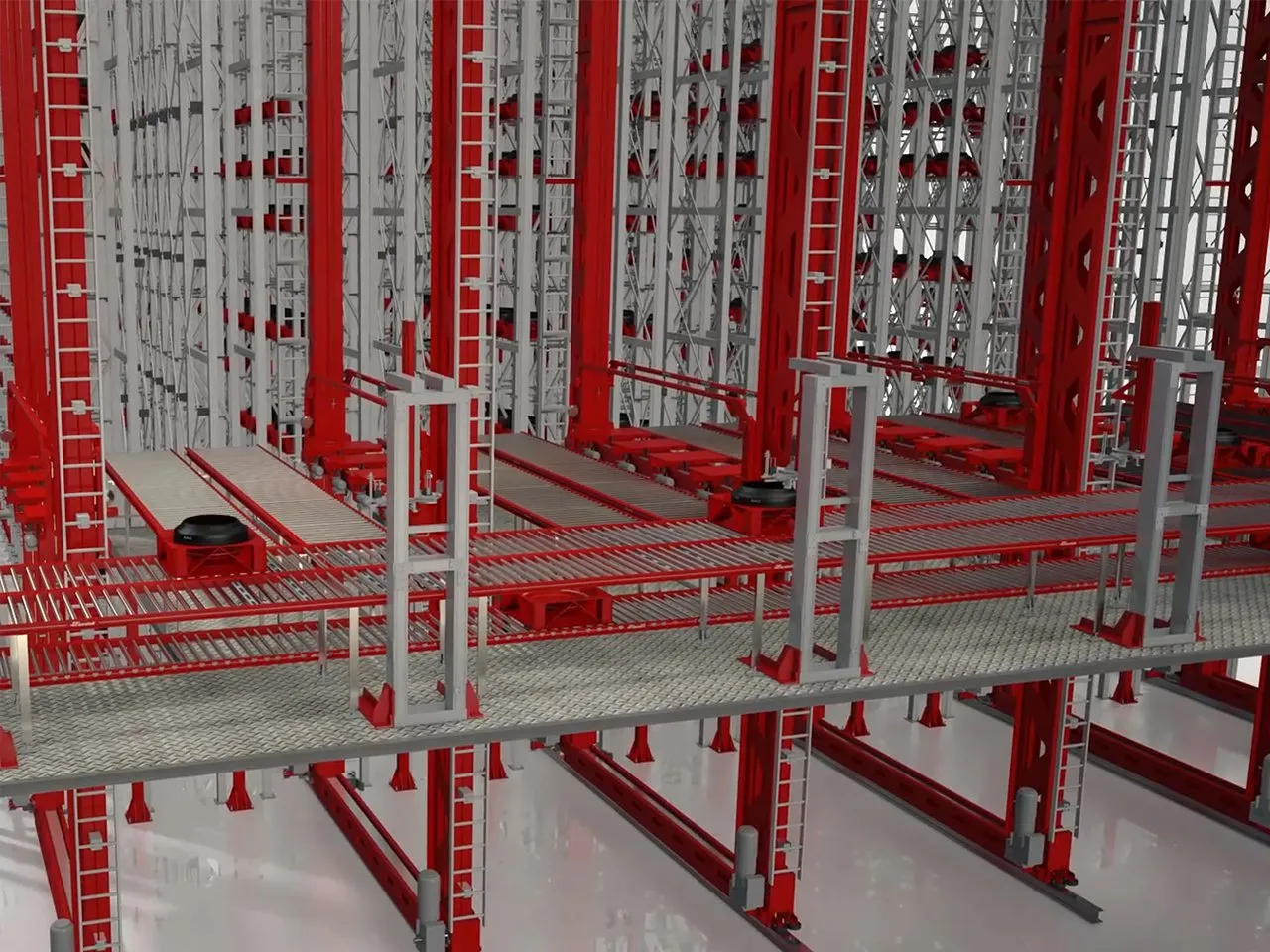

gt-storage-2

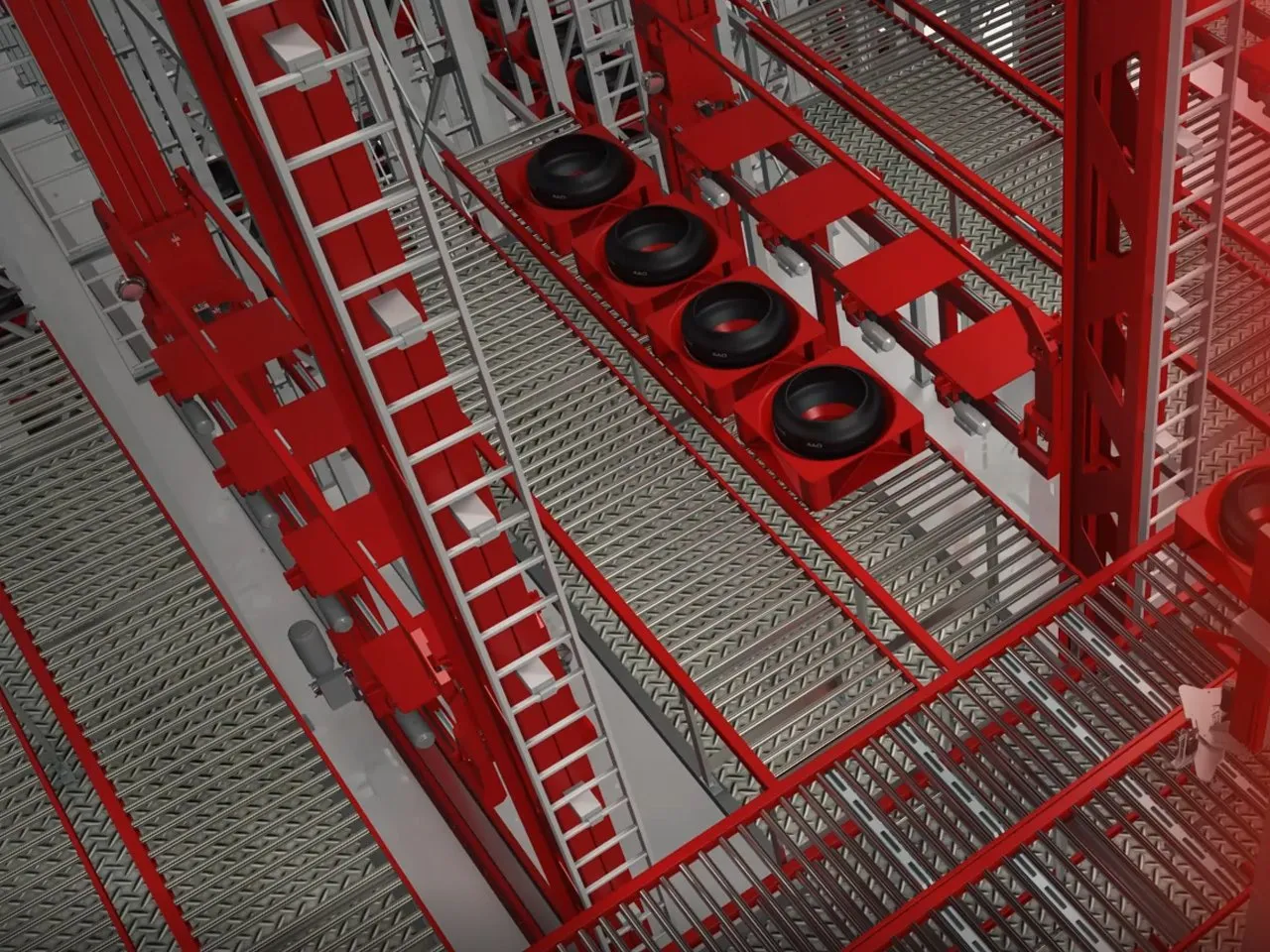

gt-storage-4
gt-storage-without-tote
GT-storage1

TIRE DIVISION

Automated Storage System
