Inclined plate carousels

Cassioli’s inclined plate carousels can be used both in passenger baggage reclaim areas of the airport and in operational areas reserved for airport personnel. The system consists of a rigid closed-loop structure, some motorized modules and a track made of inclined plates on which the baggage is placed. The inclined plane configuration guarantees better visibility for passengers waiting for their baggage, better ergonomics, both during placement and removal of the luggage to and from the carousel and better alignment on the side nearest the operator (minimal effort to remove luggage). The inclined plate carousel occupies an area comparable to traditional flat plate carousels, but with a significantly higher load capacity.

The plates are made of fireproof PVC and are resistant to abrasion, weathering and ageing. They are overlapped along the entire circuit of the carousel and are positioned so that they can rotate around curved sectors without gaps or impacts that could damage the baggage or represent a hazard for operators. Silent operation, below 55 decibels, a handling capacity of up to 180 kg per linear metre and the quick release system (without tools) of the drive unit make this product the best choice for the new-generation airports.

MAIN FEATURES

  • Adaptable to the needs of each individual airport
  • Quick and safe baggage transport
  • Automatic friction-drive system to ensure a high level of safety
  • Easy maintenance and possible replacement of internal components
  • Pickled steel frame
  • Option to create customized configurations

GALLERY

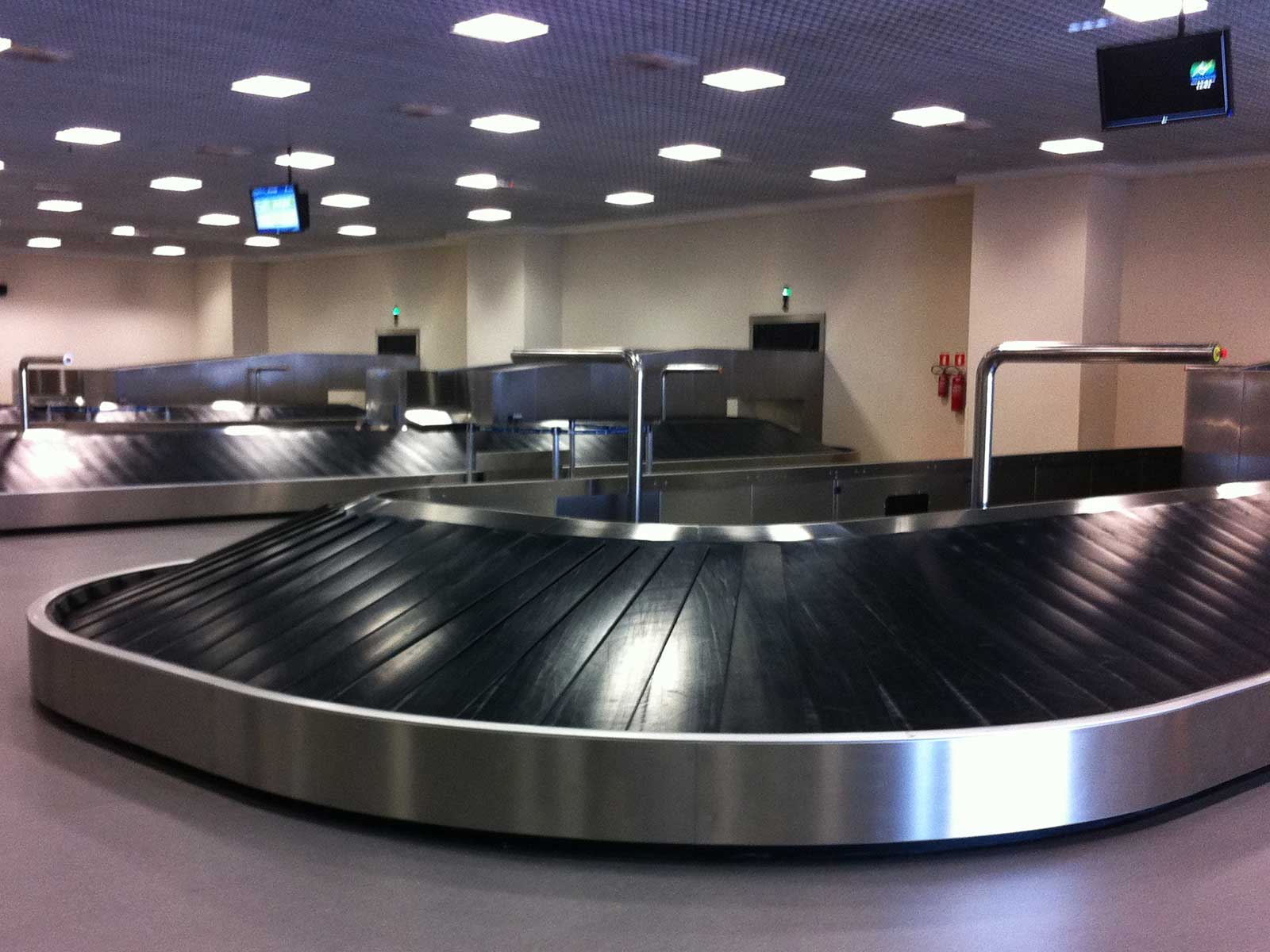

piastre-inclinate-1

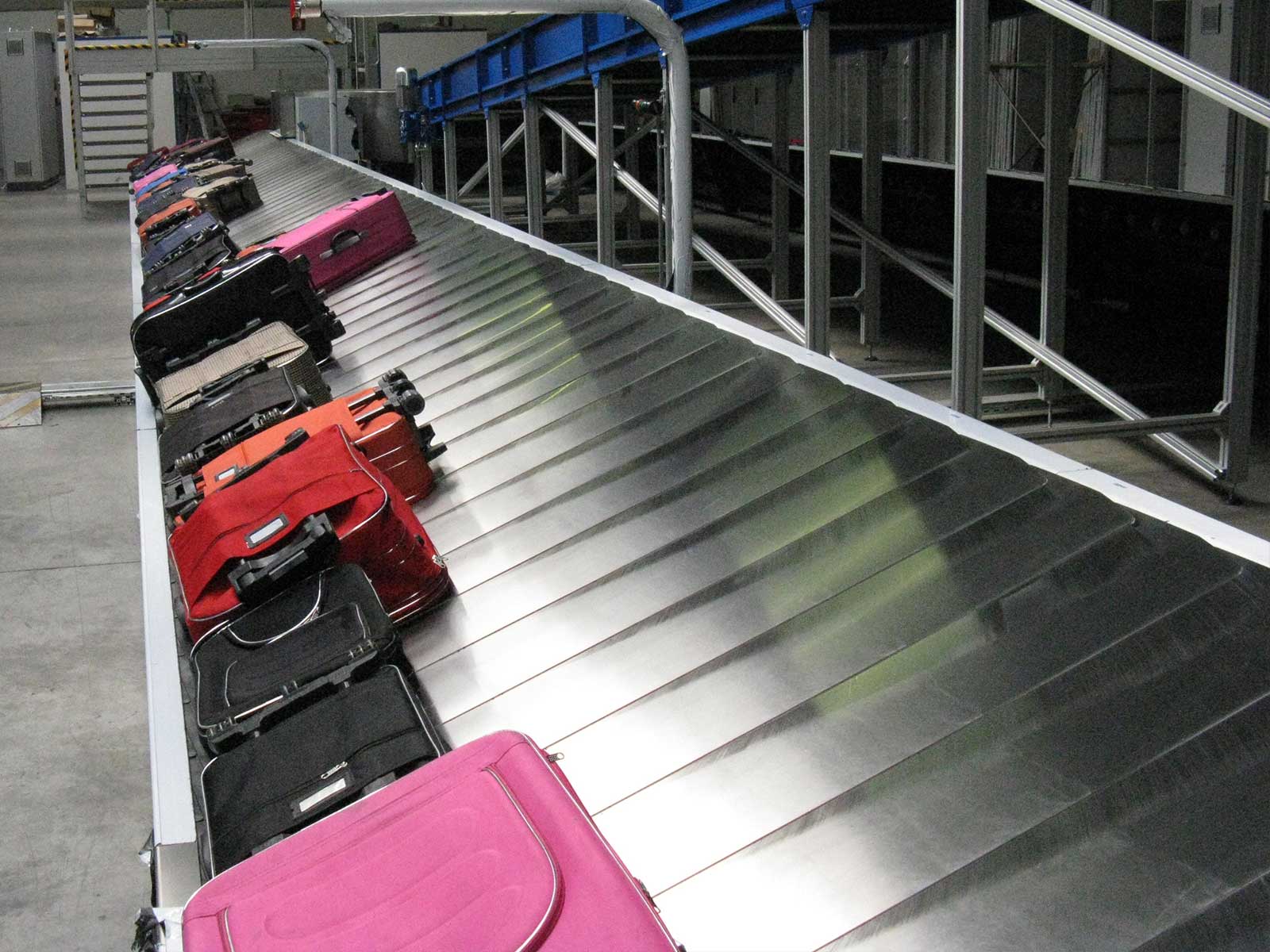

piastre-inclinate-2
piastre-inclinate-5
