FAST2CHECK ADVANCED

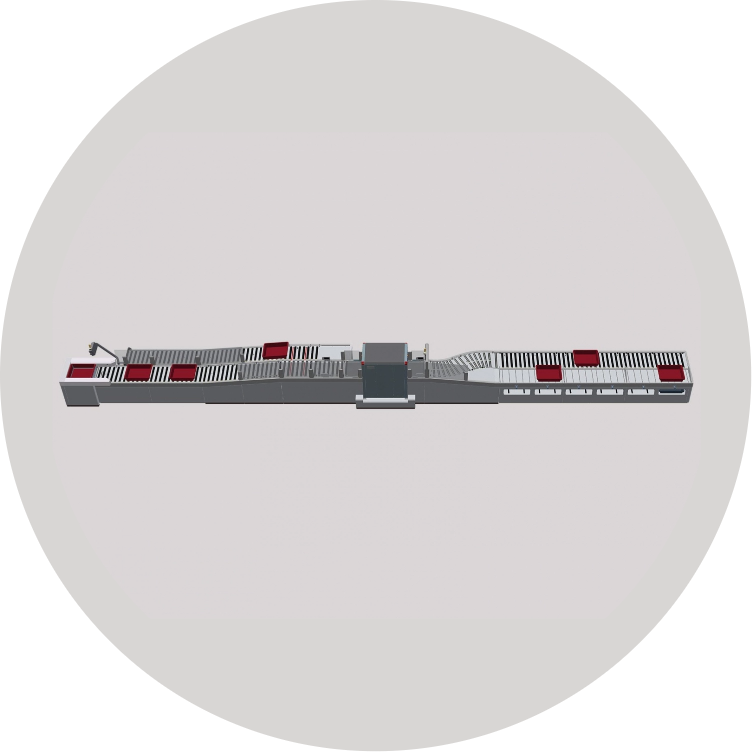

The most advanced ATRS system for airport automatic hand luggage screening

FAST2CHECK Advanced is the fastest and most innovative solution for airport passenger baggage checking, thanks to complete automation of the entire inspection process. Like all Cassioli FAST2CHECK products, FAST2CHECK Advanced is equipped with the innovative “Queue Beater” system. The distinctive feature of the Advanced model is the automatic tray-recovery system, complete with IR/3D hybrid technology viewing module for empty trays. After having checked the baggage contained within, the empty trays return to the following passengers at the start of the process, via a high-speed automatic return system.

MAIN FEATURES

  • Queue Beater
  • Ideal for large international airports or airports with large flows
  • Automatic tray recirculation system
  • Advanced control for detection of empty trays at the end of the line
  • Option to also manage trays with customized bottom or advertising
  • Quick and efficient management of the security system
  • Modularity and flexibility of the structure
  • Customization of design and colours
  • Customization of trays

TECHNICAL FEATURES FAST2CHECK

Queue Beater Min. Length 15.5 metres – Max 22 metres
Number of Queue Beater positionsfrom 2 to 8
Shape of Queue Beater Parallel/ inclined at 30°/inclined at 90°
Queue Beater outgoingYes/No
Automatic tray return systemYes/No
Smart workstation Yes/No
Type of X-ray machineAll leading manufactures in the sector
Average troughput for each individual lineFrom 445 to 470 trays/hour
Peak speed (more than 2 hours) for each individual lineFrom 510 to 550 trays/hour
Average tray/passenger ratioFrom 1 to 2.2
Maximum passenger flow recorded at the entrance of the metal detector From 320 to 350 passengers/hour
