Flat plate carousels

Cassioli’s flat plate carousels are operated by a central drive chain, supported by an automatic friction-drive system that guarantees a high level of safety in the airport. Thanks to a quick-release system, the drive unit can be removable without the need for special tools: this allows easy maintenance or replacement of internal components.
The pickled steel support frame is capable of withstanding the expected maximum operating loads. The structure consists of modular elements of different shapes that can be combined to create custom configurations, or separated for disassembly and reuse with to a new layout.

The carousel is motorised for the maximum capacities and operating speeds required. The shaped and articulated flat plates can receive luggage at any point along the carousel. The material (PVC) used to coat the plates is fireproof, and resistant to abrasion, weathering and ageing. The plates are overlapped along the entire circuit of the carousel and are positioned so that they can rotate around curved sectors without gaps or impacts that could damage the baggage or represent a hazard for operators or passengers.

MAIN FEATURES

  • Adaptable to the needs of each individual airport
  • Quick and safe baggage transport
  • Automatic friction-drive system to ensure a high level of safety
  • Quick-release mechanism
  • Easy maintenance and possible replacement of internal components
  • Pickled steel frame
  • Option to create customized configurations

GALLERY

carosello-piastre-piane-9

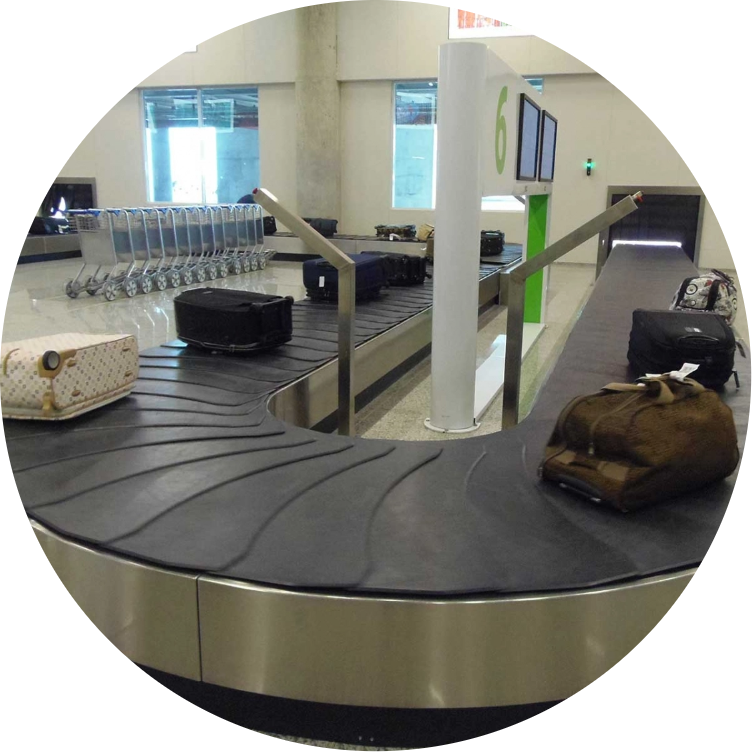

piastre-piane-1-1
piastre-piane-2
piastre-piane-4
piastre-piane-5
