Case study Ajinomoto

The Company

Ajinomoto is a Japanese multinational manufacturer of foood and reference in amino acids founded in 1909 in Tokyo that produces :condiments, cooking oils, foodstuffs and pharmaceuticals.

Ajinomoto’s literal translation is “Essence of Taste,” used as a brand name for the company’s monosodium glutamate. As of 2019, Ajinomoto operates in 35 countries and employs an estimate 34,504 people. Ajinomoto yearly revenue in 2019 is around US$10.1 billion.

CUSTOMER NEEDS

Ajinomoto turned to Cassioli for the realisation of an automatic warehouse for the storage of pallets of different types, from big bags to jerry cans for liquids of various kinds.

Cassioli was also to take care of the handling of the pallets at the inbound and outbound warehouse. The factory where the new automated plant was designed was in Pederneiras, one of the company’s four industrial plants, located in the state of São Paulo in Brazil.

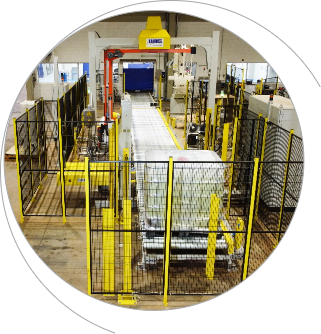

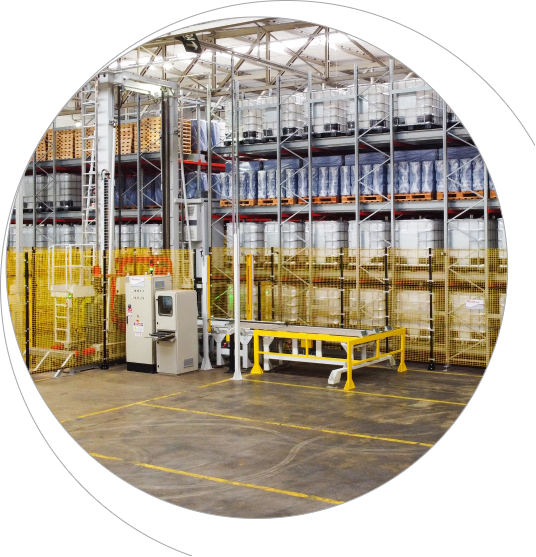

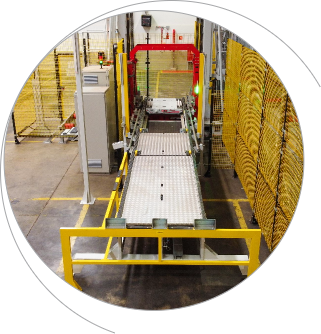

The different types of pallets arrive at the warehouse via a system of roller and chain conveyors. They then pass through quality and shape control and enter the automated warehouse. Here, they are picked by the ISAT pallet shuttle, which, through the ILIFT, provides multi-depth storage in the 7 depth levels of the warehouse, for each side.

The maximum weight of the pallets is 1050 kg and the total warehouse measures 33.3 metres long by 22.6 metres wide (each side of the warehouse). The height of the warehouse is 6.9 metres, on 4 levels.

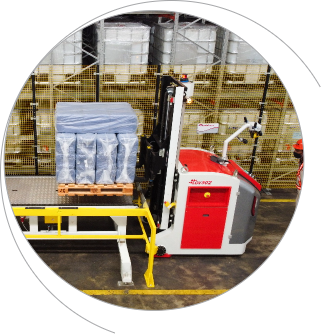

The two Cassioli LGVs help to move pallets in and out of the automated warehouse.

Previous
Next

The Cassioli solution

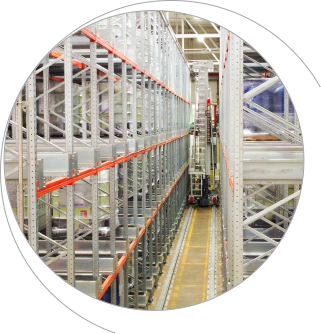

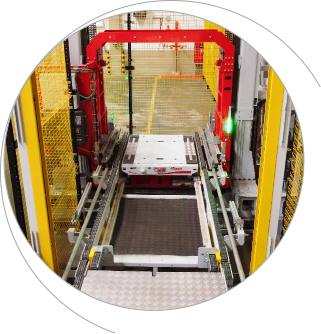

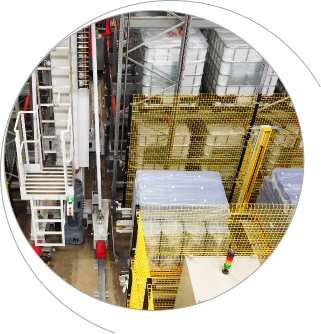

Cassioli has therefore developed a storage system based on the use of a special ILIFT stacker crane with an ISAT on board for multi-depth pallet storage.

The Cassioli solution therefore includes:

  • 1 ILIFT stacker crane with ISAT for multi-depth storage
  • roller and chain conveyors
  • quality and gauge control system, barcode control system
  • LGV automated guided vehicles
  • picking bays for entry and exit of pallets from the warehouse

Advantages

MAXIMUM EXPLOITATION
OF AVAILABLE SPACE

SIGNIFICANT REDUCTION IN
THE RISK OF OPERATIONAL
ACCIDENTS

INCREASED PRODUCTION
EFFICIENCY

MAXIMUM ORGANISATION OF
THE WORKING ENVIRONMENT

CASE STUDY

Automated Warehouse
AJINOMOTO

DOWNLOAD BROCHURE
