FAST2CHECK MICRO

Performance at the checkpoint

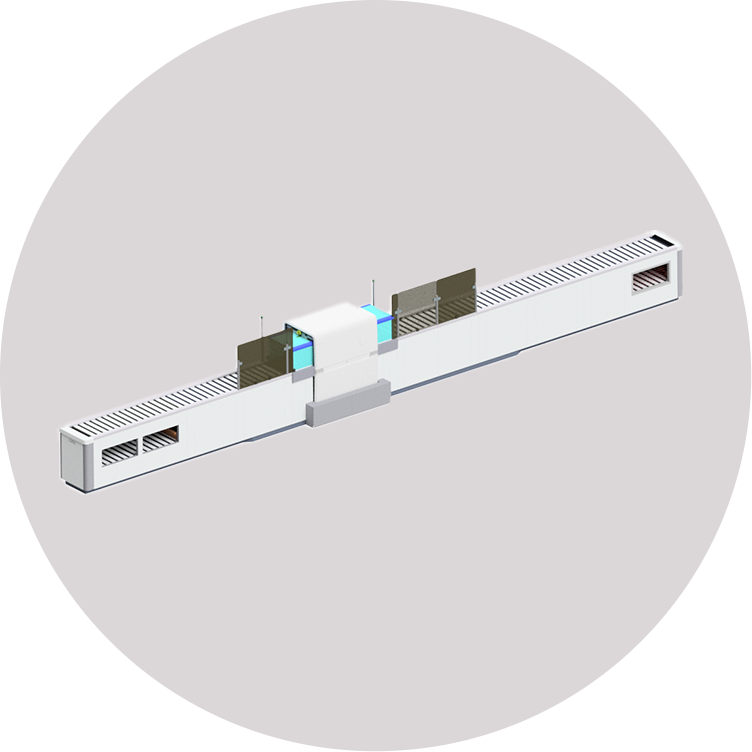

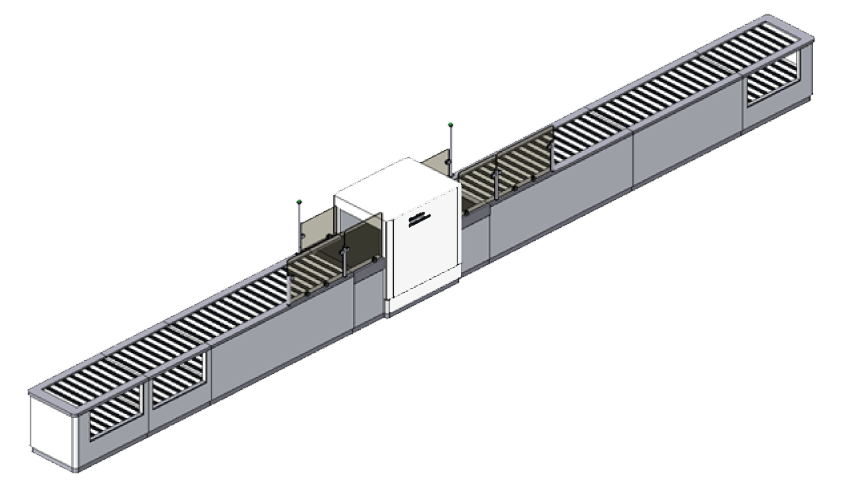

Cassioli’s Fast2Check Micro model is an ATRS (Automatic Tray Return System) designed to enable higher productivity, reduce waiting times and increase passenger flow. Fast2Check meets the needs of any type of airport, from the smallest to the largest international airports.

The design and engineering innovation helps to significantly reduce queuing times, while keeping in mind the goal of ensuring the highest standards of airport security. The modular design allows for excellent system flexibility, enabling the development of different configurations according to the needs of each airport. The high quality of the materials used for the components guarantees optimum operational reliability of the equipment, with an availability of more than 99.5%, even with 24h use.

Feature Highlights

  • Footprint: 1 m x 11−14 m.
  • Divest height: 1 m. (custom)
  • Transport height: 1 m. (custom)
  • Power consumption: 2 - 4 kW.

TECHNICAL FEATURES FAST2CHECK MICRO

Compatible CT Scanners

  • Smiths Detection Hi-Scan 6040 series
  • Smiths Detection Hi-Scan 7555 series
  • Smiths Detection Hi-Scan 100100V series
  • Rapiscan 620XR
  • Rapiscan 622XR
  • Rapiscan 920 series
  • Other models: contact our sales department

Cassioli Tray
Technical Information

  • The preferred size in the market: 685 x 550 x 140 mm
  • Internal capacity: 61’5 x 51’5 x 13’7 cm.
  • High grip plastic, grip pads not necessary.
  • More than 20.000 units in operation.
  • ECAC and UK certifications approvals.
